-TUNNEL DRILlINING EQUIPMENT
Hydraulic Drilling Jumbo
- High-Performance Hard Rock Excavation
- Precision NATM & Semi-Mechanized Tunneling Solutions
- Next-Gen Intelligent & Automated Control Systems

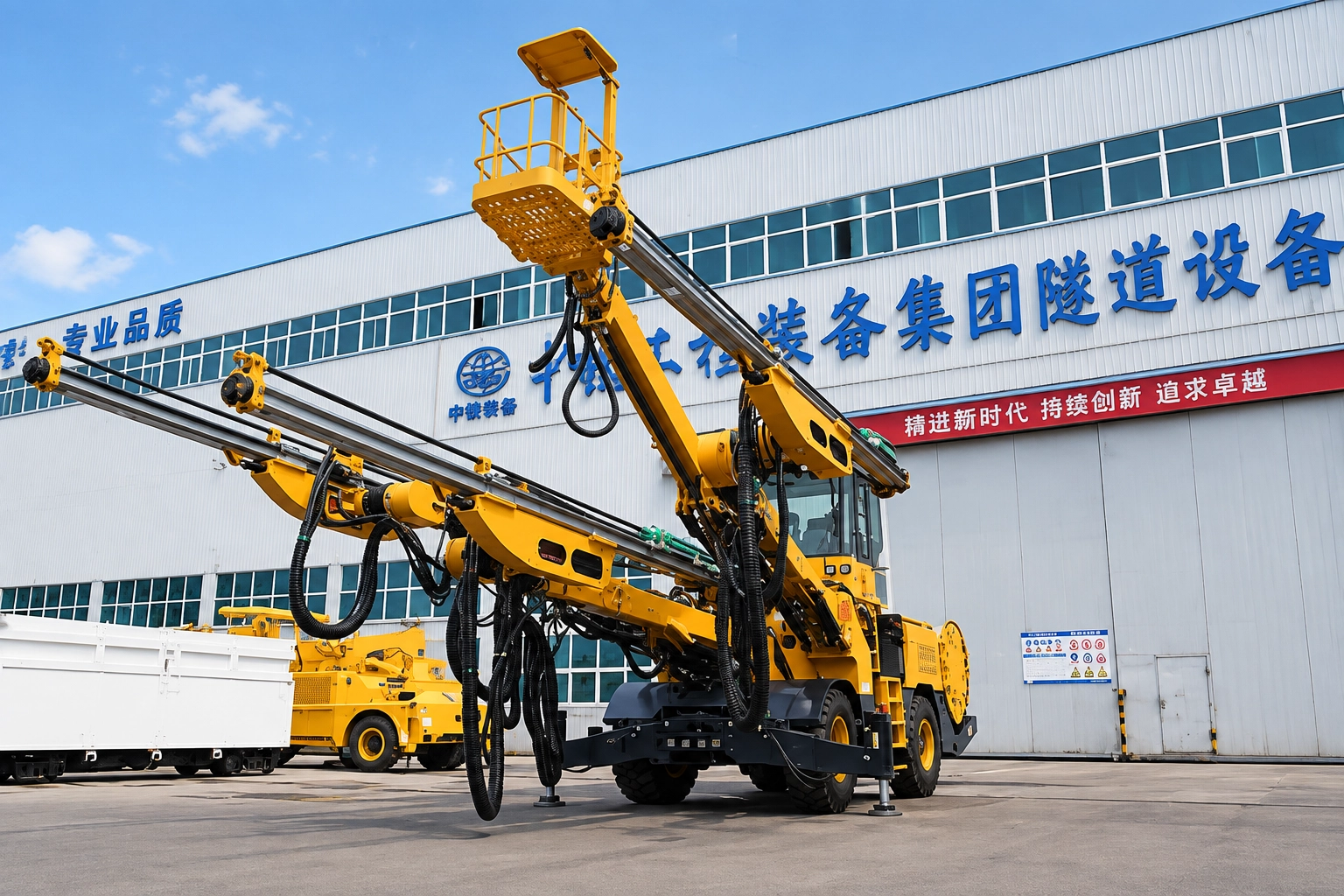

Hydraulic Drilling Jumbo

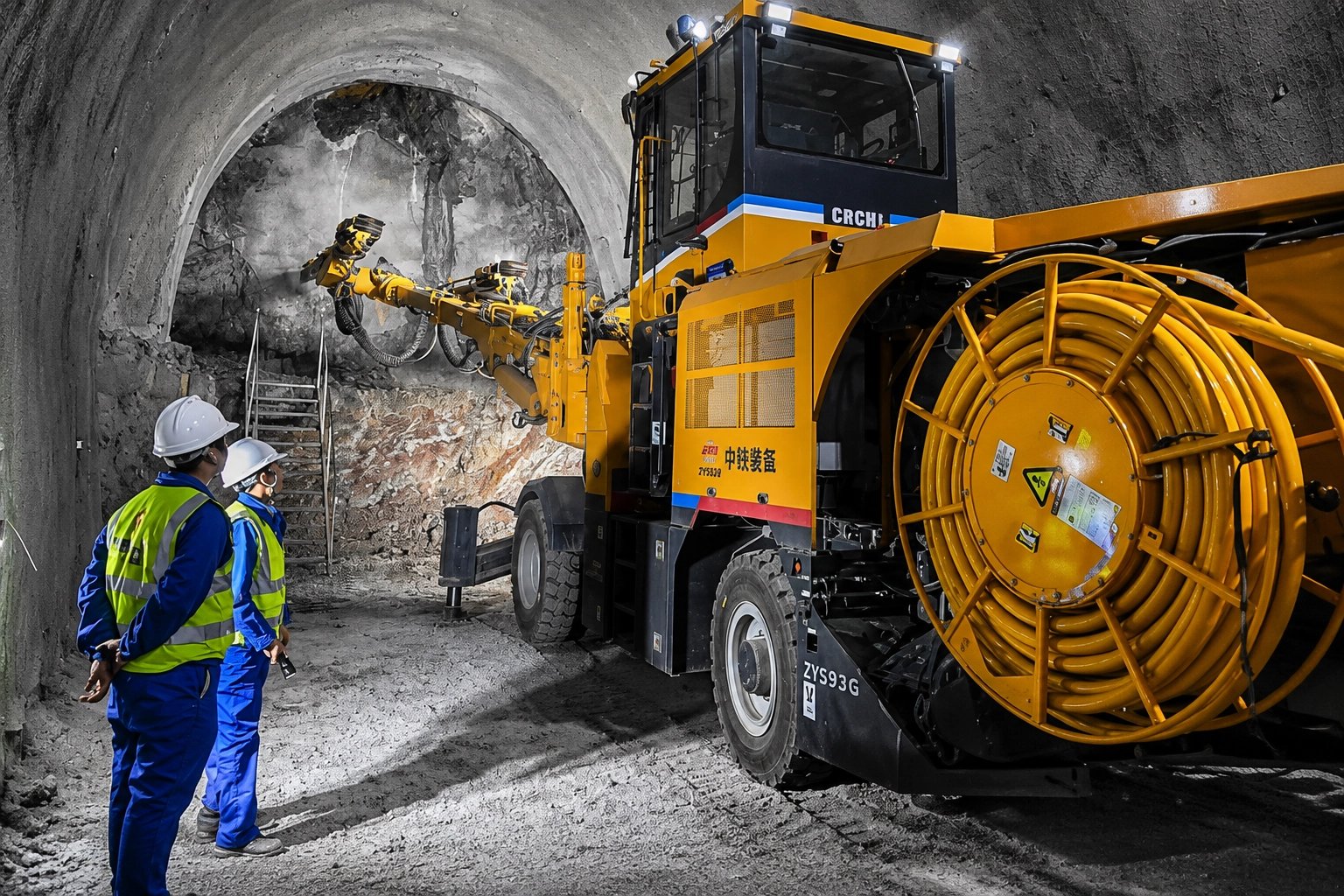

A drilling jumbo is a key excavation tool used in traditional (NATM) and semi-mechanized tunneling, designed for drilling, blasting, and face preparation in hard rock. CREG models are typically designed with two or three booms and are equipped with either hydraulic control systems or fully intelligent automatic systems.
- Applications
- Rock Tunnels
- Underground Mines
- Excavation of Galleries and Ramps
- Metro Projects in NATM Sections
- Technical Specifications
| Parameter | Value |
|---|---|
| Number of Booms | 1 to 4 Booms |
| Drilling Type | Hydraulic Rock Drilling |
| Hole Diameter | 38 to 64 mm (up to 127 mm in some models) |
| Drilling Depth | 2 to 5 meters (per cycle) |
| Total Machine Power | 150 to 350 kW |
| Control System | Joystick / Automation / Laser guidance |
| Drilling Speed | Up to 4 m/min |
| Drilling Angle | ±180 degrees (depending on the model) |
- Key Features & Benefits
- High precision in blasting patterns & optimized explosive consumption
- Significantly faster tunneling and face excavation speed
- Adaptable to diverse small, medium, and large cross-sections
- Integrated anti-vibration system with rock-solid boom stabilization
