Tunnel Ventilation System
- Airflow Capacity from 1,000 up to 10,000 m³/h
- Fresh Air Supply & Dust and Gas Extraction
- VFD/PLC Smart Control for Energy Efficiency
Tunnel Ventilation System
The Tunnel Ventilation System supplies fresh air to the tunnel face, exhausting hazardous gases and dust generated during excavation. In long tunnels and TBM projects, this system is critical to both worker health and safety, ensuring continuous air quality and safe operating conditions along the entire tunnel heading.
- Applications
- Tunnel Ventilation During Excavation
- Dust and Gas Extraction
- Airflow Control in Long Tunnels
- Oxygen Supply in Confined Underground Spaces
- Technical Specifications
| Parameter | Value |
|---|---|
| Airflow Capacity | 100,000 to 1000,000 m³/h |

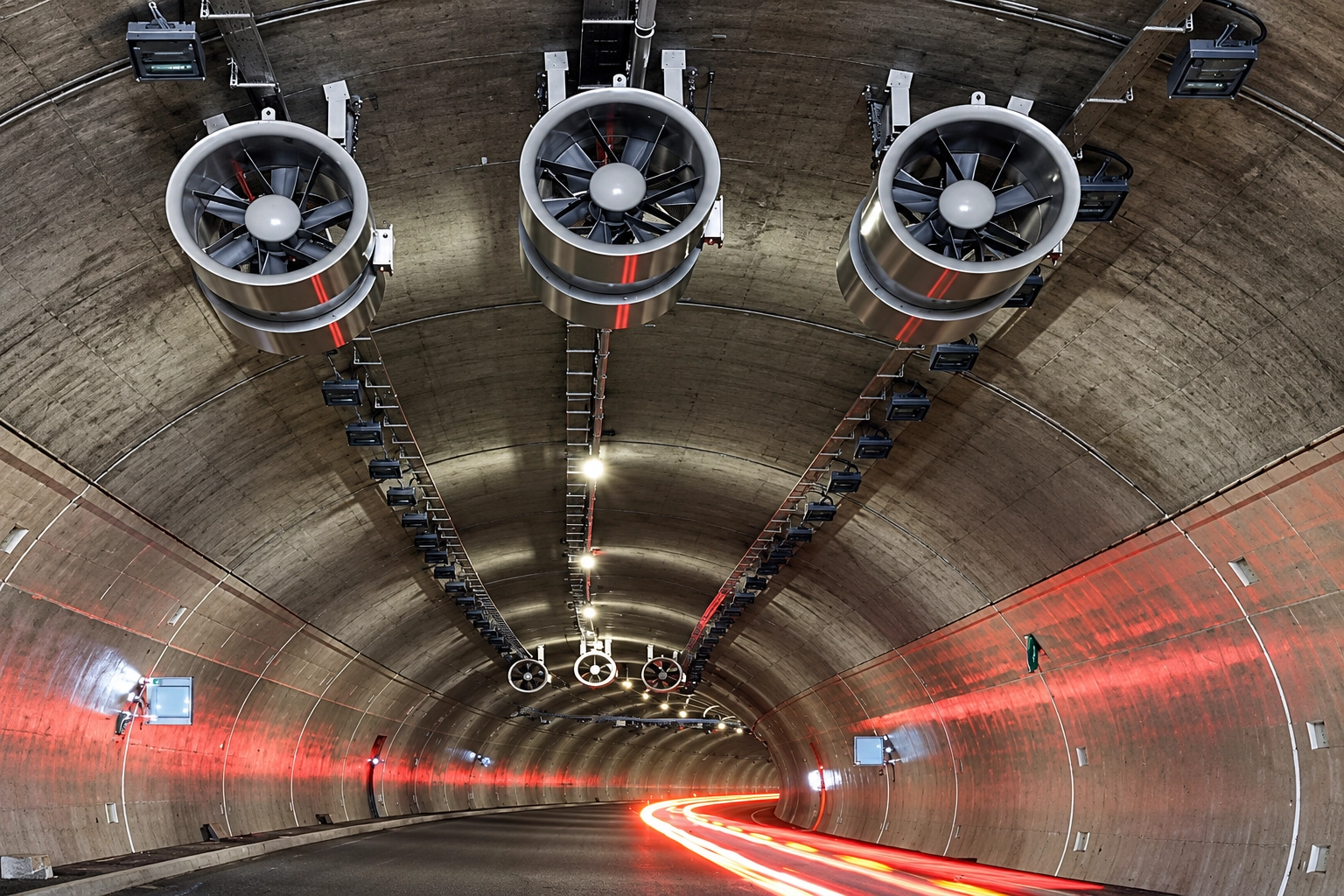

| Fan Type | Axial / Jet Fan |
| Static Pressure | 500 to 3000 Pa |
| Duct Length | Up to Several Kilometers |
| Control System | VFD / PLC |
- Key Features & Benefits
- Continuous supply of fresh air keeps the tunnel face safe and breathable, even at great distances from the portal.
- VFD-controlled fans reduce power consumption while maintaining effective extraction of dust and hazardous gases.

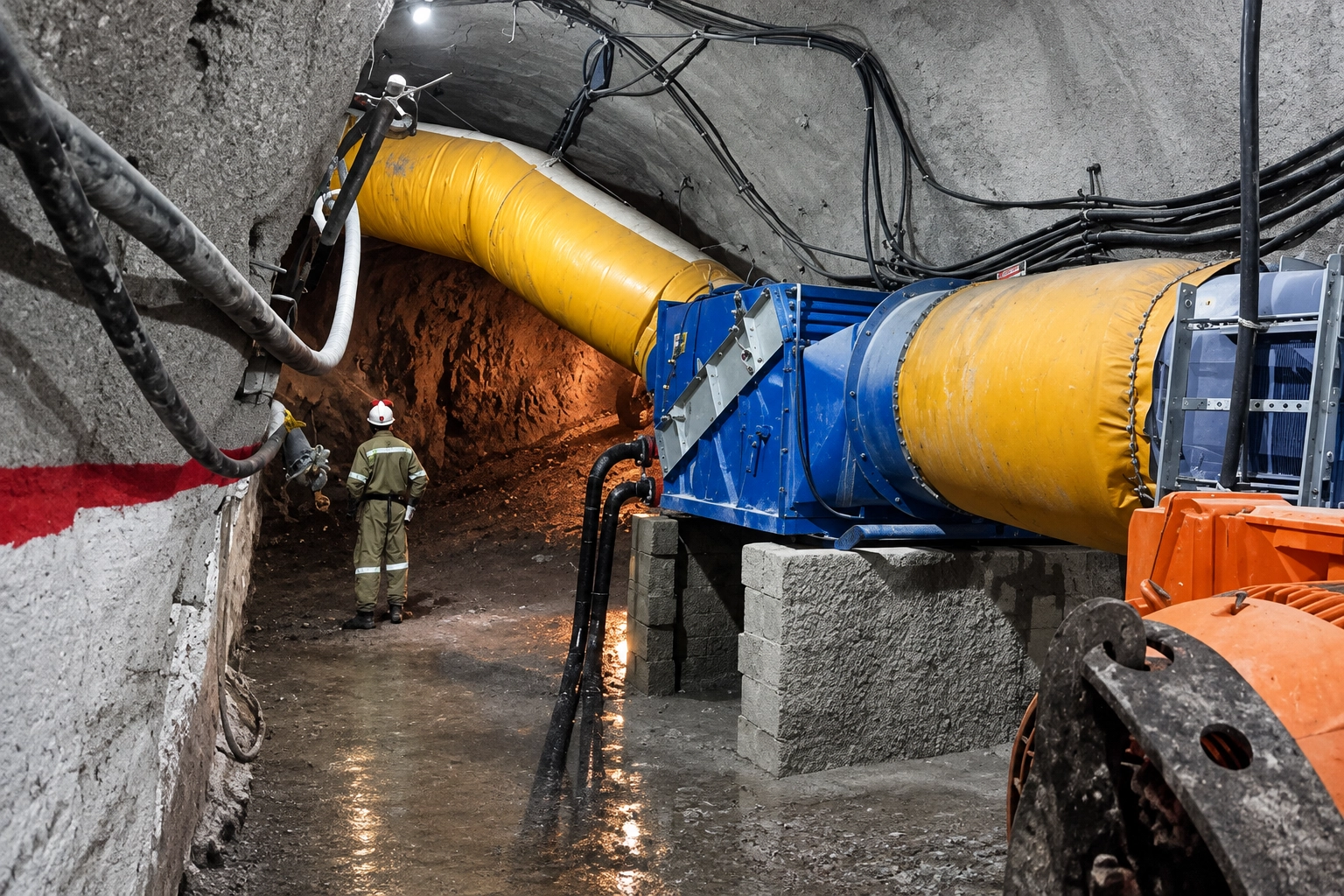

- Modular axial fans and ducting extend ventilation for kilometers, matching the needs of long TBM drives.
- Reliable airflow guarantees safe oxygen levels in confined underground work environments.
