- MECHANIZED TUNNELING & TBM SYSTEMS
Segment Production System
- High Daily Output Capacity: 20 to 120 Segment Rings/Day
- High-Precision Steel Molds with ±1 mm Dimensional Tolerance
- Integrated Curing & Heavy-Duty Gantry/Vacuum Lifter Logistics
Segment Production System
The Tunnel Segment Production and Handling System is an integrated industrial solution dedicated to fabricating high-strength precast concrete lining segments that form the permanent structural shell of TBM-driven tunnels. The complete automated workflow encompasses precision steel mold assembly, concrete casting, accelerated steam curing, demolding, yard storage, and vacuum-assisted transport logistics into the tunnel.
- Applications
- Precast Concrete Tunnel Lining Ring Production
- Urban Metro, Subway & Underground Railway Networks
- Water Transmission, Hydroelectric & Drainage Tunnels
- Heavy-Duty Mechanized TBM Tunneling Projects
- Technical Specifications
| Parameter | Value |
|---|---|
| Production Capacity | 20 to 120 Rings / Day |
| Mold Type | Steel precision molds |
| Curing Time | 8 to 24 Hours |
| Dimensional Accuracy | ± 1 mm |
| Handling & Logistics System | Gantry crane / Vacuum lifter |
- Key Features & Benefits
- Heavy-duty precision-machined steel molds maintain tight ± 1 mm ±1 mm dimensional tolerances, ensuring flawless ring alignment and zero structural mismatch.
- Automated carousel and stationary lines deliver high production rates of 20 to 120 complete rings per day to seamlessly match rapid TBM advance rates.

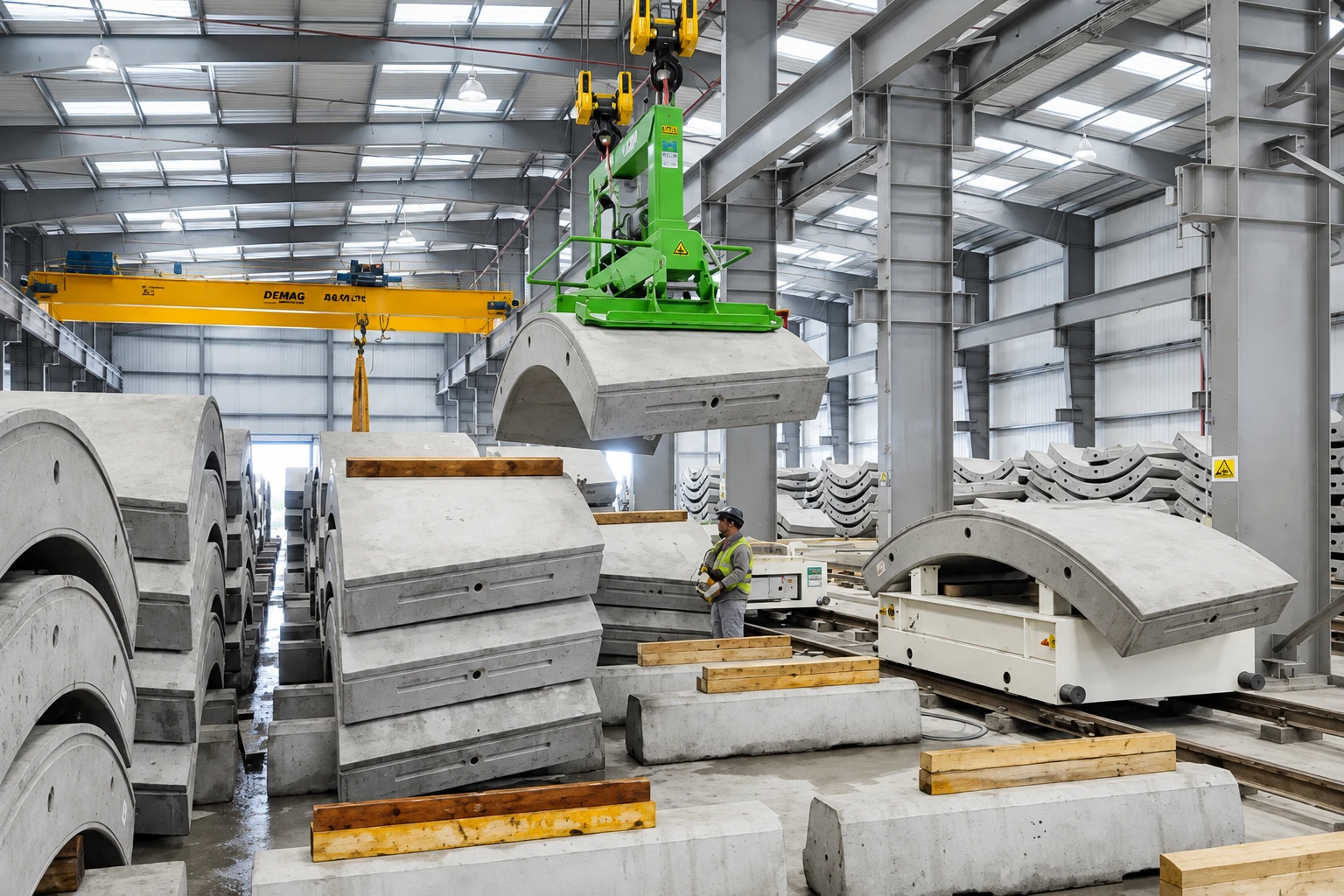

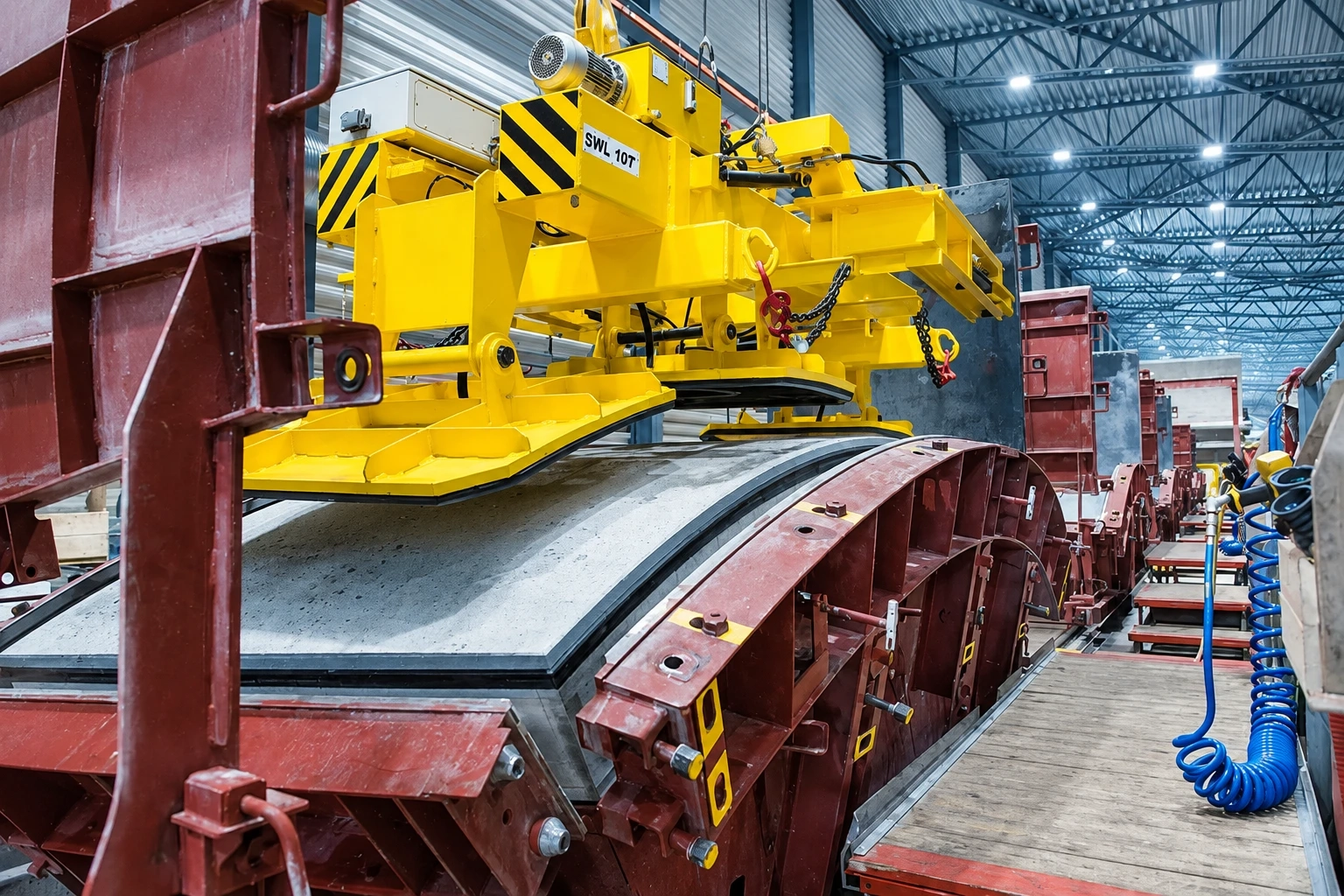

- Dedicated vacuum lifters and gantry crane systems handle fresh and cured concrete segments safely without chipping edges or damaging sealing gaskets.
- Accelerated thermal curing cycles (8 to 24 hours) maximize mold turnaround time while achieving high early-age concrete strength.
