Slurry Treatment Plant – STP
- Processing Capacity of 200 to 2,000 m³/h
- Two-Stage Separation: Vibrating Screen & Hydrocyclone
- Modular / Containerized Design for Rapid Deployment
Slurry Treatment Plant – STP
The Slurry Treatment Plant (STP) is one of the key auxiliary systems in mechanized tunneling, designed to separate excavated soil and rock particles from the bentonite slurry returned from the tunnel face. The treated slurry—now cleaned and reconditioned—is recirculated back into the TBM circuit, enabling a continuous and economical slurry excavation cycle while dramatically reducing fresh slurry consumption and disposal volumes.
- Applications
- TBM Slurry Shield Tunneling Projects
- Oil, Gas & Petrochemical Drilling Operations
- Foundation & Diaphragm Wall (Trench) Support Systems
- Enhancing Consumption Efficiency of Bentonite Slurry
- Reducing Operational Costs and On-Site Waste Disposal
- Technical Specifications
| Parameter | Value |
|---|---|
| Processing Capacity | 200 to 2,000 m³/h |
| Separation Stages | Up to 2 stages |
| Main Equipment | Vibrating Screen / Hydrocyclone |
| Solids Recovery Rate | Up to 80% |
| System Configuration | Modular / Containerized |
- Key Features & Benefits
- Handles slurry circulation rates from 200 up to 2,000 m³/h to fully match the excavation pace of large-diameter Slurry TBMs.
- Recycles up to 80% of usable slurry, drastically cutting fresh bentonite consumption, logistics costs, and waste haulage volumes.

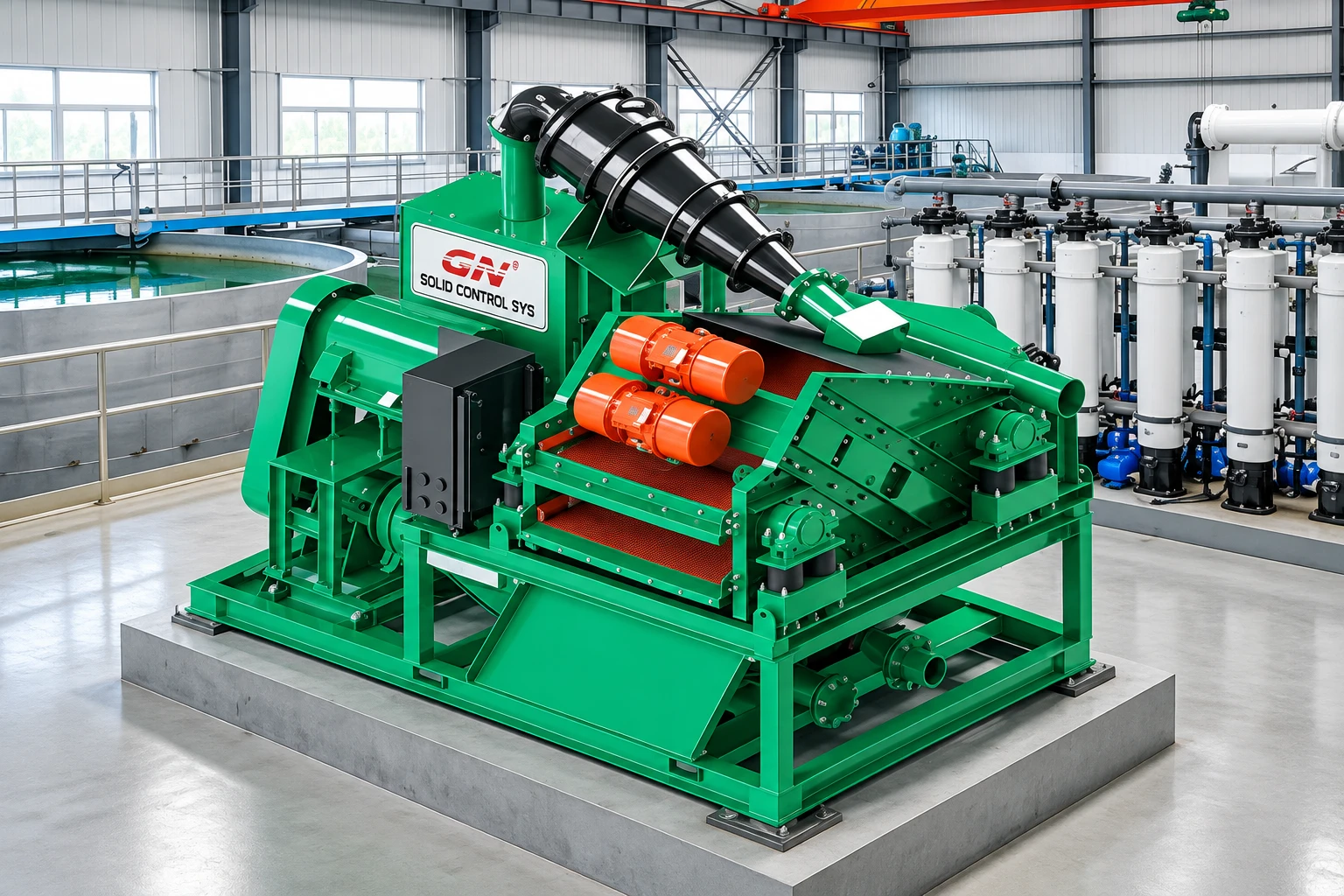

- Combines coarse solids removal via vibrating screens with fine particle separation through high-efficiency hydrocyclones for superior slurry quality.

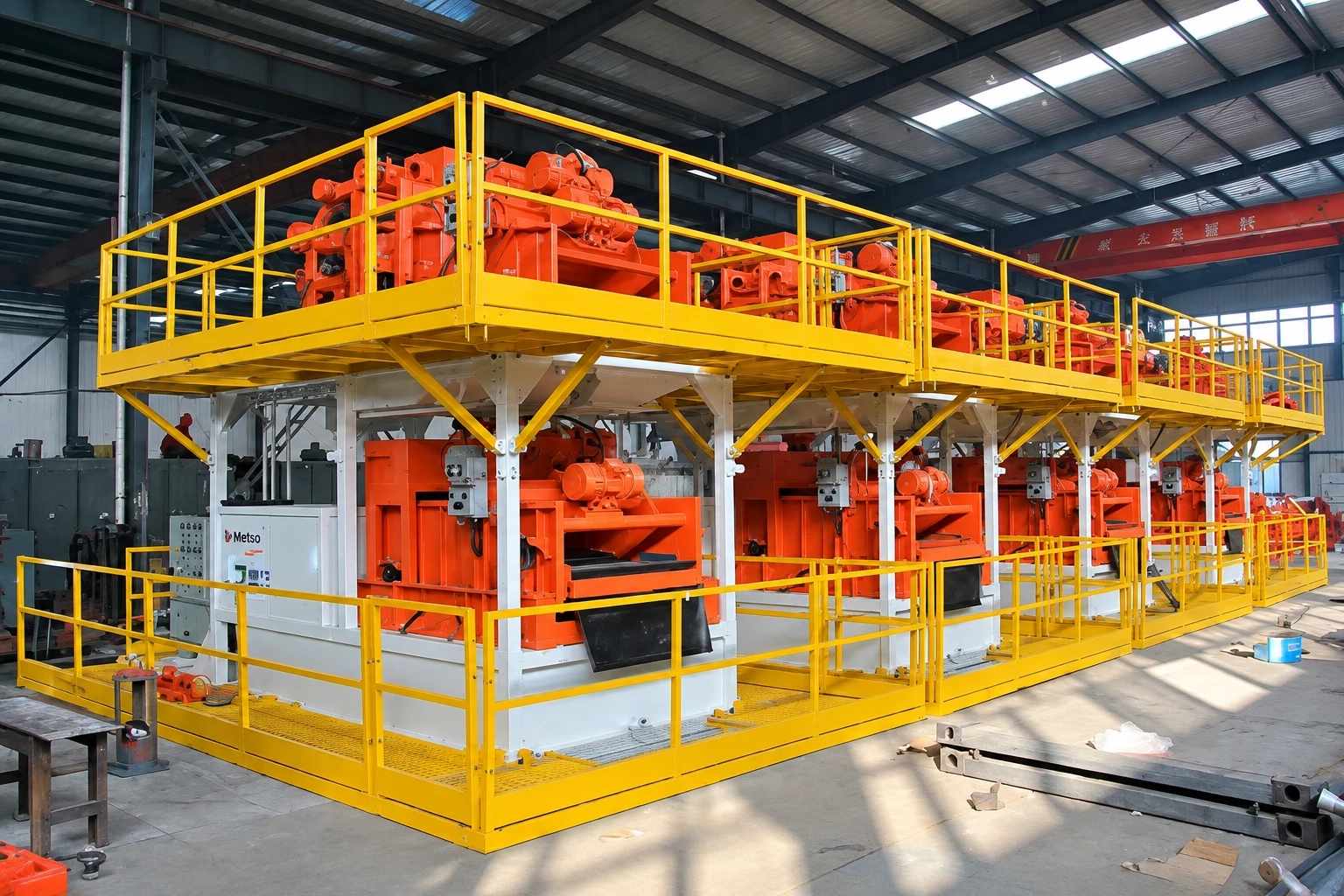

- Fully containerized, modular architecture ensures fast transport, rapid on-site assembly, and easy scalability for any project size.
